Home Product COB Series

Overview Parameters

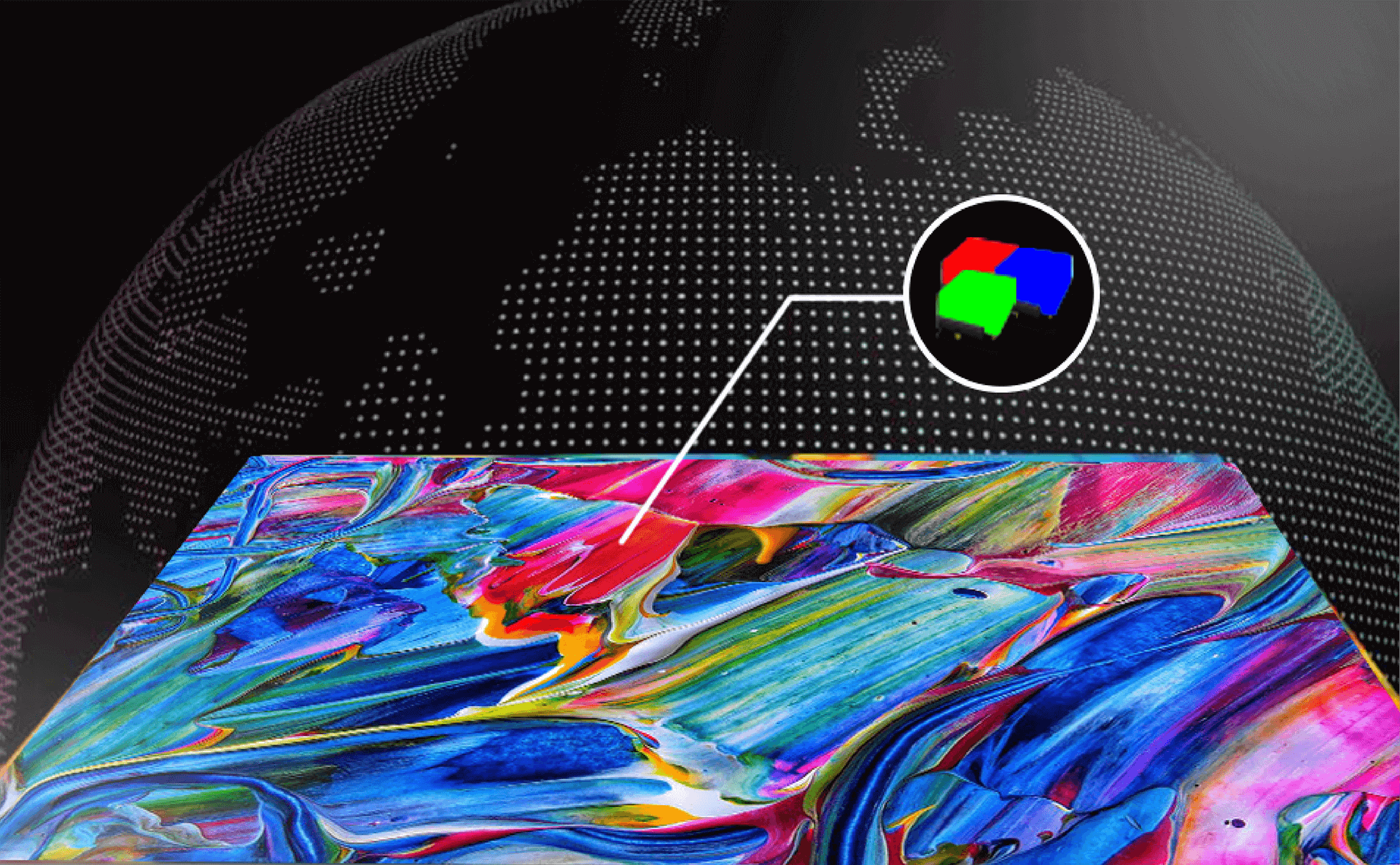

Flip Chip Integrated packaging

RGB full flip chip COB packaging composition, with each chip fixed to the circuit board separately.

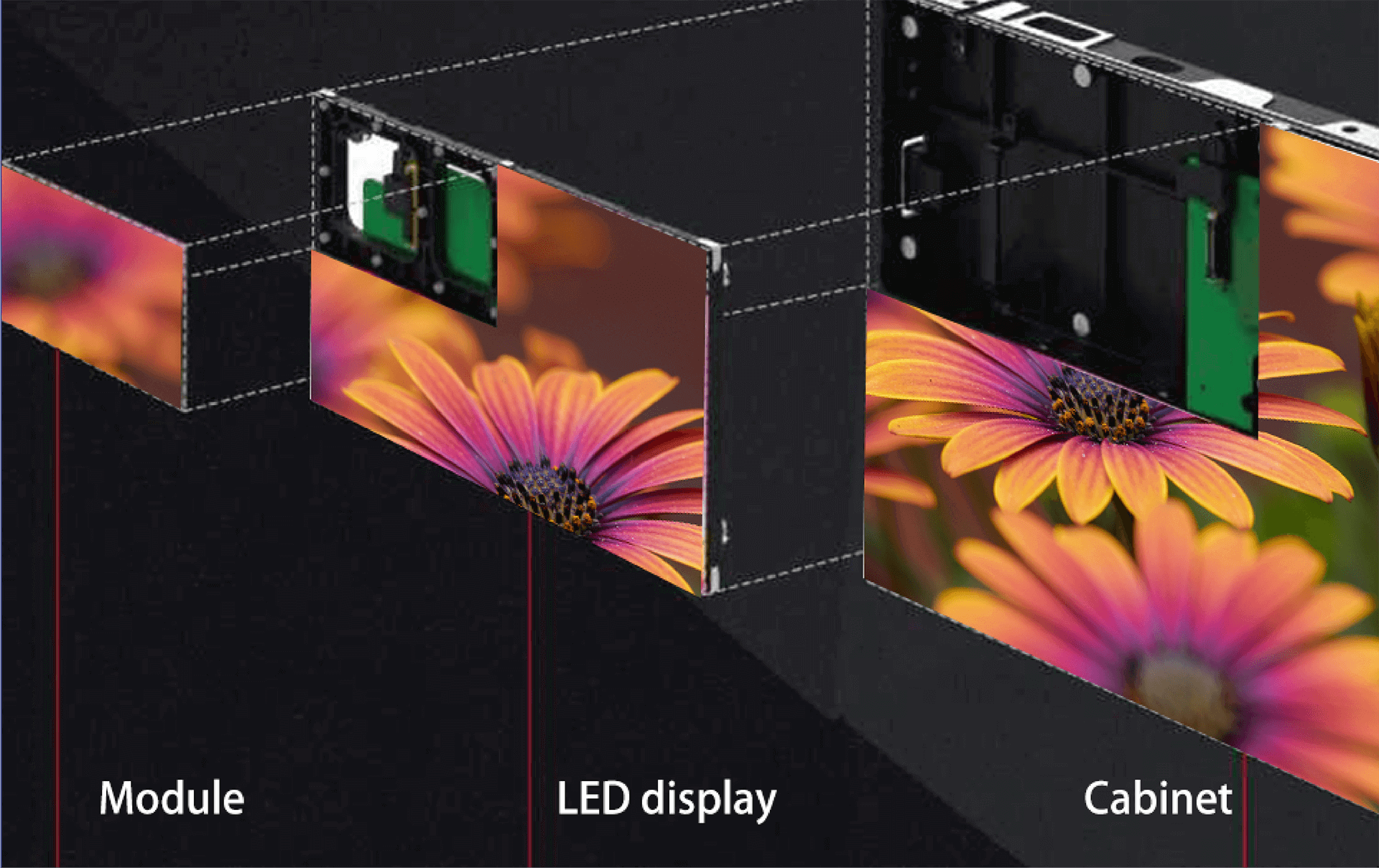

Unique design and module installation

The modular design of the entire box is divided into two unit structures - display kit and display module.

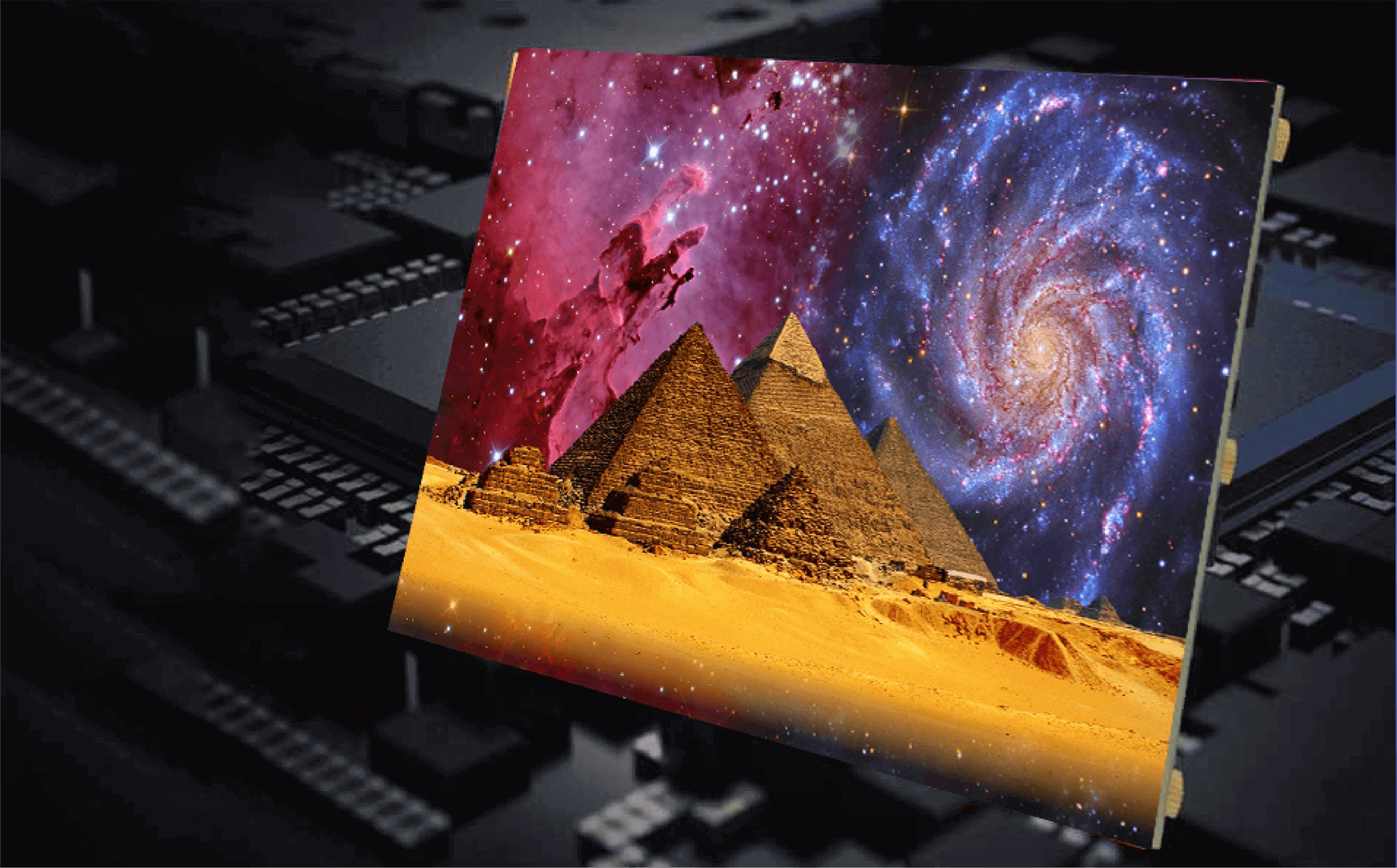

High color contrast and ultra-low power consumption

Ultra high contrast, super large viewing angle, fast heat dissipation, low power consumption, and longer life.
Stable and reliable and adaptation to the environment

Dust proof, moisture-proof, and anti-static
Ultra high reliability and stability, with pixel failure rate less than 1010PPM.

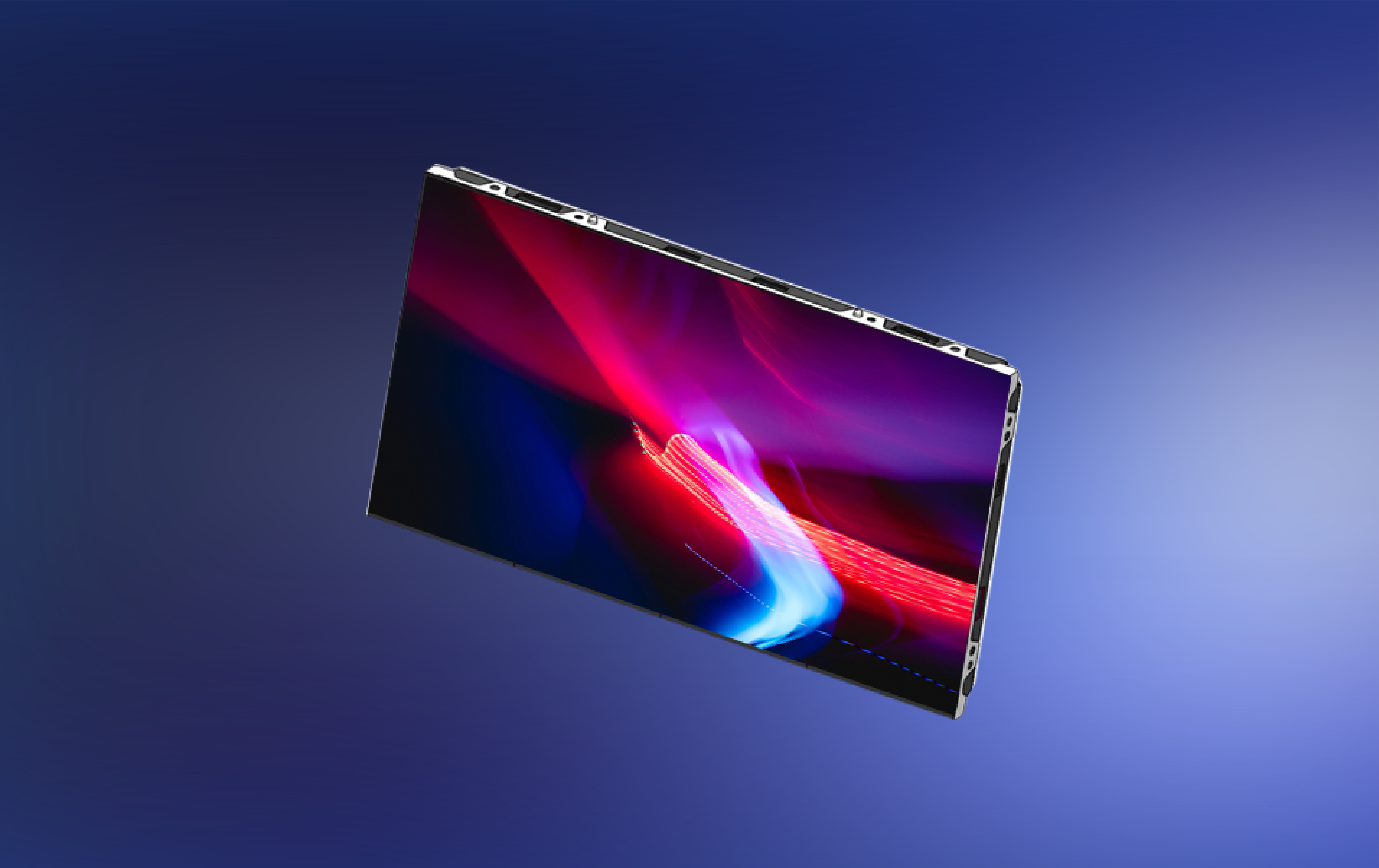

Anti-collision surface and easy maintenance

Anti collision, non falling light, waterproof and wear-resistant, can be directly wiped, easy to clean and maintain.

Product Parameters

Model	COB0.9	COB1.2	COB1.5
Pixel Spacing (mm)	0.9375	1.25	1.5625
LED Configuration	1R1G1B
Module Size W×H(mm)(W*H)	150×168.75mm
Module Resolution W×H(W*H)	160×180dots	120×135dots	96×108dots
Product SizeW×H(W*H)	600×337.5mm
Cabinet Resolution W×H(dot)(W*H)	640×360dots	480×270dots	150×150dots
Cabinet Weight(KG/unit)	≈5.1	≈4.6	≈4.2
Pixel Density（dot/㎡）	1168561	640000	409600
Scan method	1/54	1/60	1/48
Supports hot plugging	Supports
Single-point brightness	Available
Single-point chroma correction	Available
Display panel corrected brightness (NITS)（nits）	400-600
Installation/maintenance mode	Front installation/Front maintenance
Contrast (dynamic)	13,000:1	18,000:1	10,000:1
Brightness uniformity	≧98%
Chromaticity uniformity(Cx,Cy)	±0.003
Display panel peak power consumption(W/㎡)	≦450
Average power consumption of display panel(W/㎡)	≦150
Power Requirements (Panel)	DC3.7V
Frame change rate(Hz)	50&60
Operating environment	-40°C~ +60°C,10%~90%RH
Lifetime typical	100，000hours
