"Wind" screen series-GS-LED

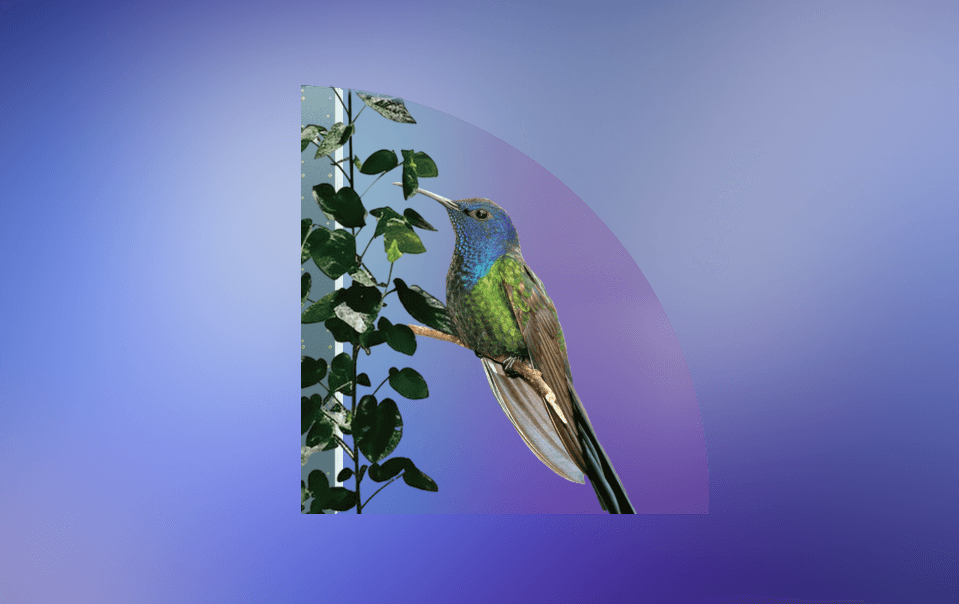

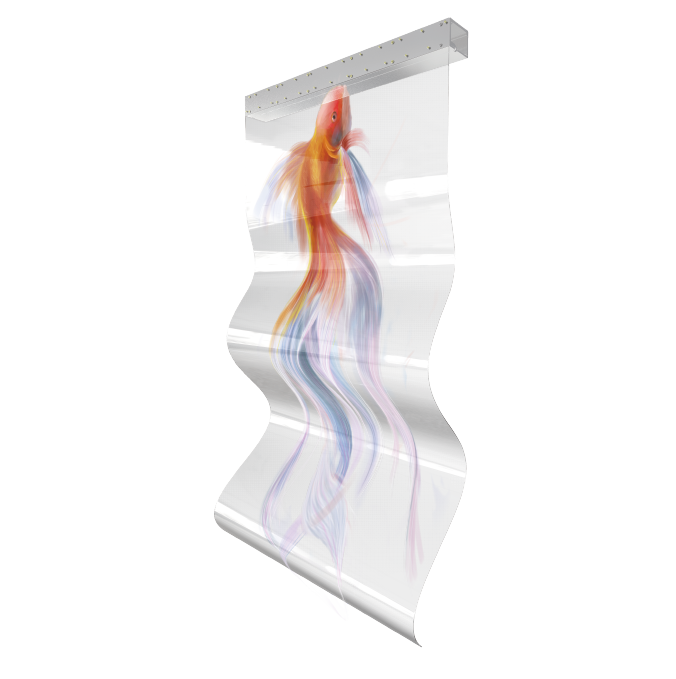

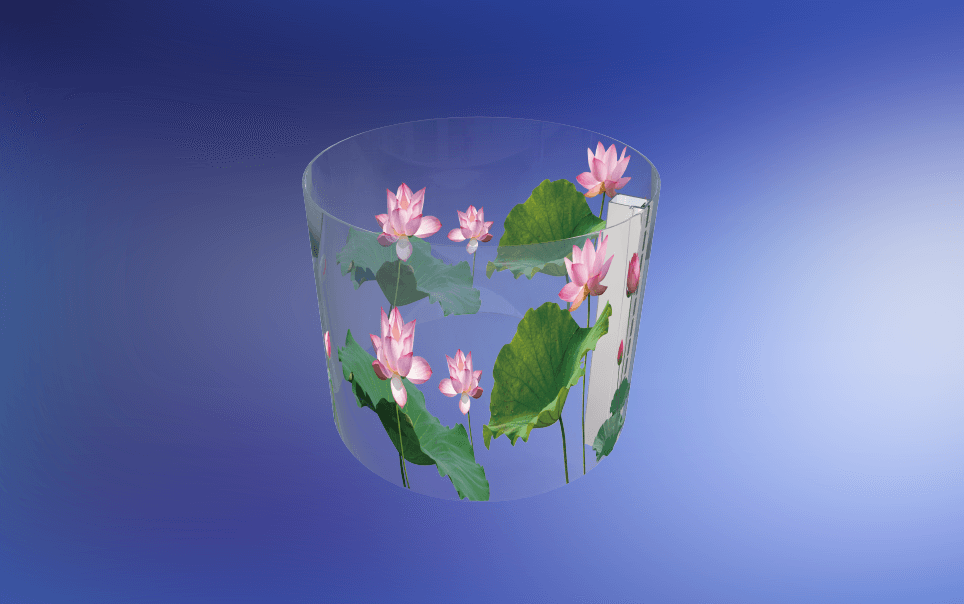

soft film screen
soft film screen
crystal soft, silky and transparent, casual cut, light fitting
Contact Us
| Model | GEM-GS5.9 | GEM-GS7.8 | GEM-GS5-10 | GEM-GS10.4 | GEM-GS15.6 | GEM-GS20 |
|---|---|---|---|---|---|---|
| Pixel Pitch (H/V mm) | 5.9 | 7.8 | 5-10 | 10.4 | 15.6 | 20.8 |
| LED Configuration | Mini LED 1313 | Mini LED 2121 | Mini LED 2121 | Mini LED 2121 | Mini LED 2121 | Mini LED 2121 |
| Pixel Density (dot/m²) | 28224 | 16384 | 20000 | 9216 | 4096 | 2304 |
| Transparency | 60% | 80% | 85% | 90% | 95% | 95% |
| Drive Scheme | Integration | |||||
| Scan method | Static | |||||
| Refresh Rate | 50～60Hz | |||||
| Module Size W×H(mm) | 1000×250 | |||||
| Module Resolution W×H(dot) | 168×42 | 128×32 | 200×25 | 96×24 | 64×16 | 48×12 |
| Product SizeW×H(mm) | 1000×500 | |||||
| Cabinet Resolution W×H(dot) | 168×84 | 128×64 | 200×50 | 96×48 | 64×32 | 48×24 |
| Cabinet Weight (kg/m²） | 5-7 | |||||
| IP Rating ( front/back) | INDOOR—IP30 OUTDOOP-IP65（or） | |||||
| Brightness(CD/m²) | 1000-2500nits | |||||
| Viewing Angle (H/V) | 145°/145° | |||||
| Viewing Distance（m） | 6m | 8m | 5-10m | 10m | 15m | 20m |
| Gray Scale | 14-16bit | |||||
| Max.Power Consumption (w/m²） | 800W/Unit | |||||
| Ave.Power Consumption(w/m²） | 260W/Unit | |||||
| Environment | INDOOR | |||||
| Control Mode | Special system for LED dispaly（4G+5G、APP、WIFI、LANcontro） | |||||
| Support Input | HDMI、DVI、DP、SDI | |||||
| Operation Power | AC100~240V,50/60Hz | |||||
| Operating Temperature | 0℃~40℃(work),'-20℃~60℃(store) | |||||
| Operating Humidity | 10%-90%RH | |||||
| Operating Life | >50,000hours | |||||
