GEM-GV guide video screen introduction

GV series is a LED commercial display product launched by GEM LED

It creatively uses bare chip technology on a high transparent printed circuit board

Home Product GM Series

Overview Parameters

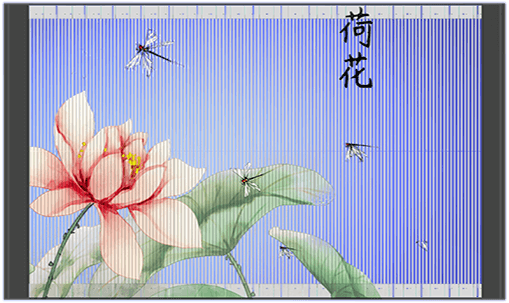

Clear display with high transparency ratio

The small pitch display screen can ensure a transparency of 40% -45% while providing stable high-definition image effects.
Stable frame rate and full color

Reduce the CLK clock signal wiring distance to reduce the internal resistance of the circuit board to ensure high grayscale, high refresh rate, high brightness, and other performance.

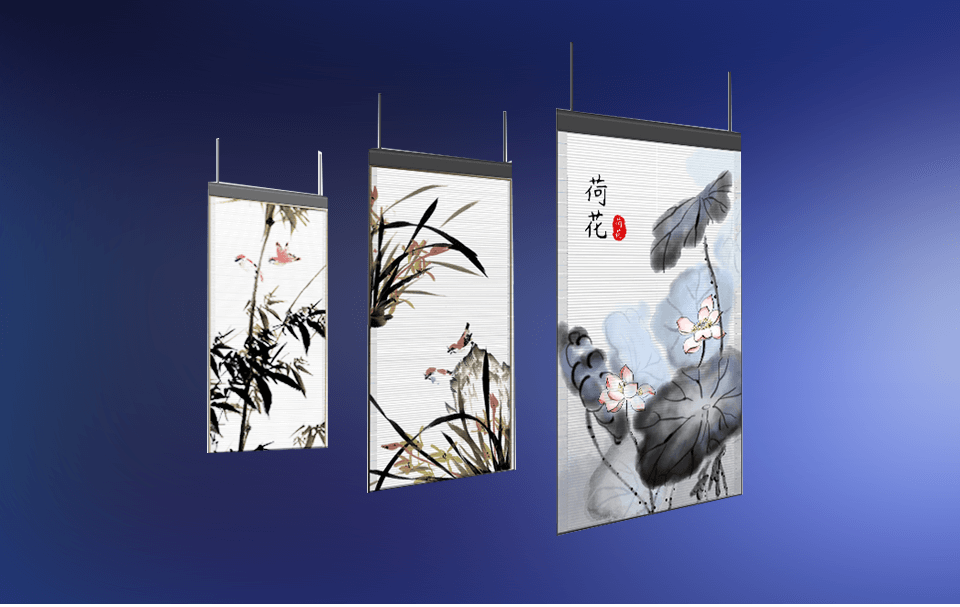

Widely usage because of integrated disassembly and assembly.

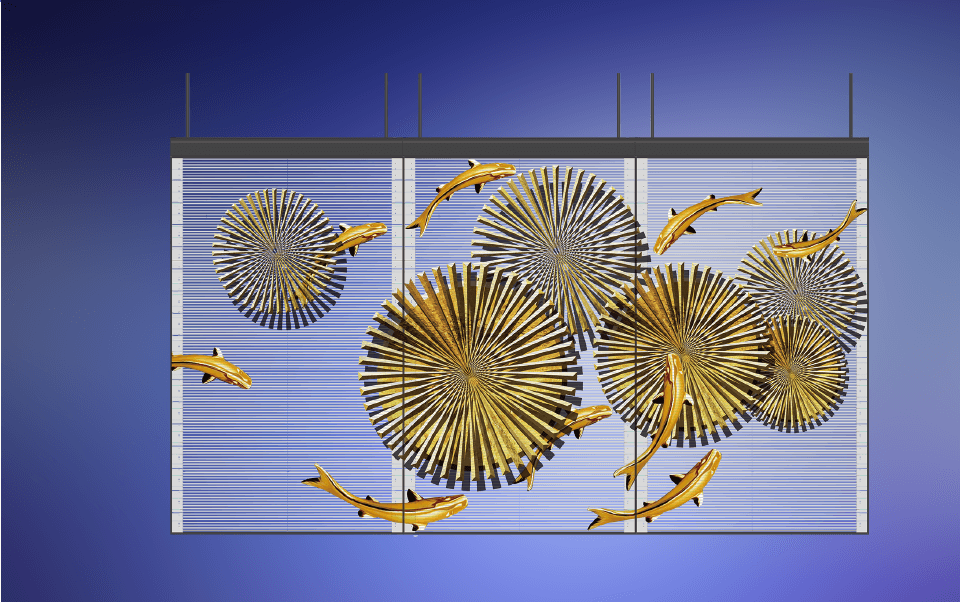

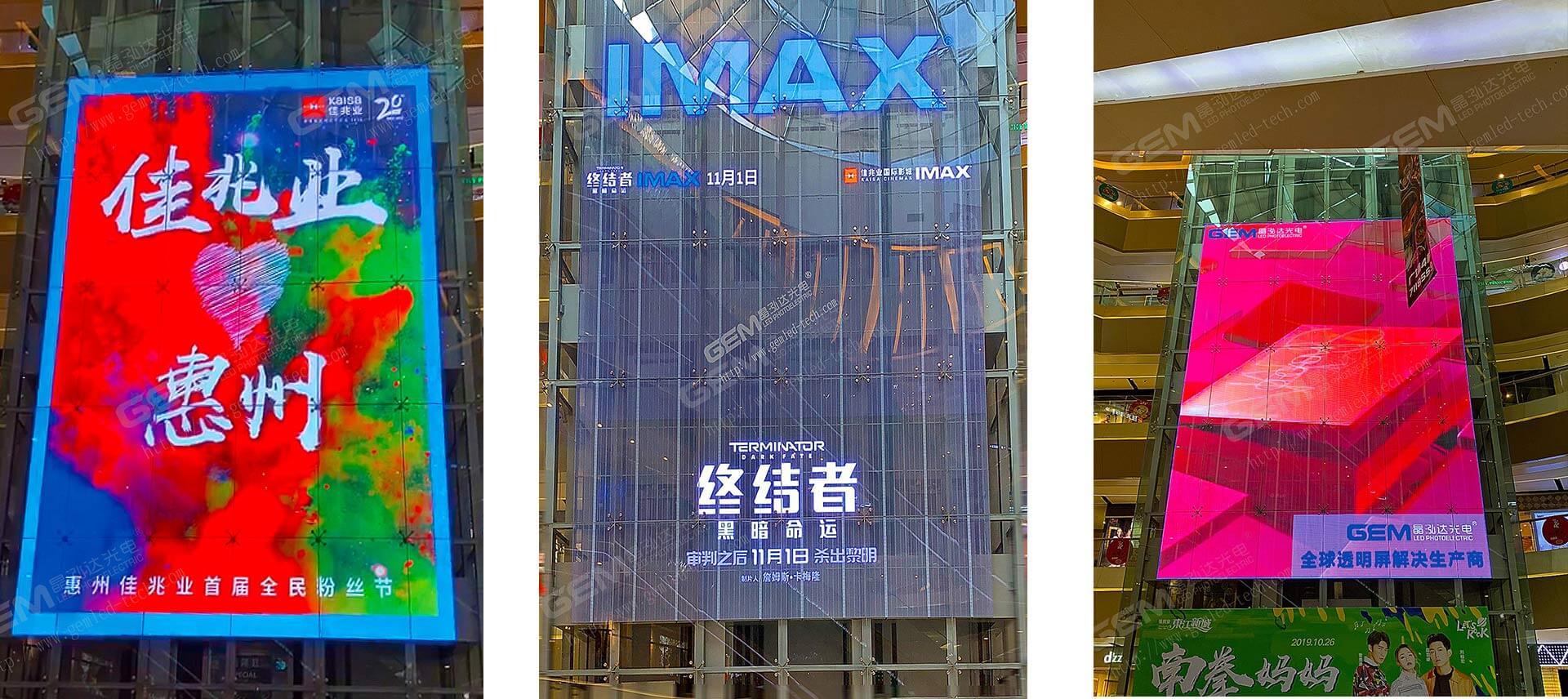

Widely apply this product in the field of transparent scenes, achieving the play of high-definition videos.

Product Parameters

Model	GEM-GV3.47S	GEM-GV3.47M	GEM-GV3.47L
Indoor-EXW Unit price（＄)/pcs	8800	11800	13500
Pixel Pitch (H/V)	W:3.47;H:3.47mm
LED Configuration	SMD 1415 RGB UV
Pixel Density (dot/m²)	55296dot/Unit	73728dot/Unit	82944dot/Unit
Transparency	<50%
Drive Scheme	18 aisle
Scan method	16 Scan
Refresh Rate	≤3840Hz
Module Size W×H(mm)	333.12X83.28mm（L/R）
Module Resolution W×H(dot)	96X24dot（L/R）
Product SizeW×H(mm)	666.24X999.36mm	666.24X1332.48mm	666.24X1499.04mm
Cabinet Resolution W×H(dot)	192X288dot	192X384dot	192X432dot
Cabinet Weight (kg/m²）	≈28kg/Unit	≈35kg/Unit	≈42kg/Unit
IP Rating ( front/back)	IP42
Brightness(CD/m²)	1000-1500nits
Viewing Angle (H/V)	140°/140°
Viewing Distance（m）	3m
Gray Scale	14-16bit
Max.Power Consumption (w/m²）	600W/Unit	800W/Unit	1000W/Unit
Ave.Power Consumption(w/m²）	180W/Unit	240W/Unit	360W/Unit
Environment	INDOOR（Optional outdoor standard）
Control Mode	built-in Universal/Select cluster control
Support Input	HDMI、DVI、DP、SDI
Operation Power	AC100~ 240V, 50/60Hz
Operating Temperature	0°C~40°C(work) , 20°C~60°C
Operating Humidity	35%~85% (work) , 10%~90%
Operating Life	≥100,000hours
