Crystal screen series-Glass Fence LED Display

"Crystal"screen series GB-LED
glass screen

High light transmittance reliable quality easy to install high refresh rate wide vision-360 is easy to maintain with high brightness

Home Product GB Series

Overview Parameters

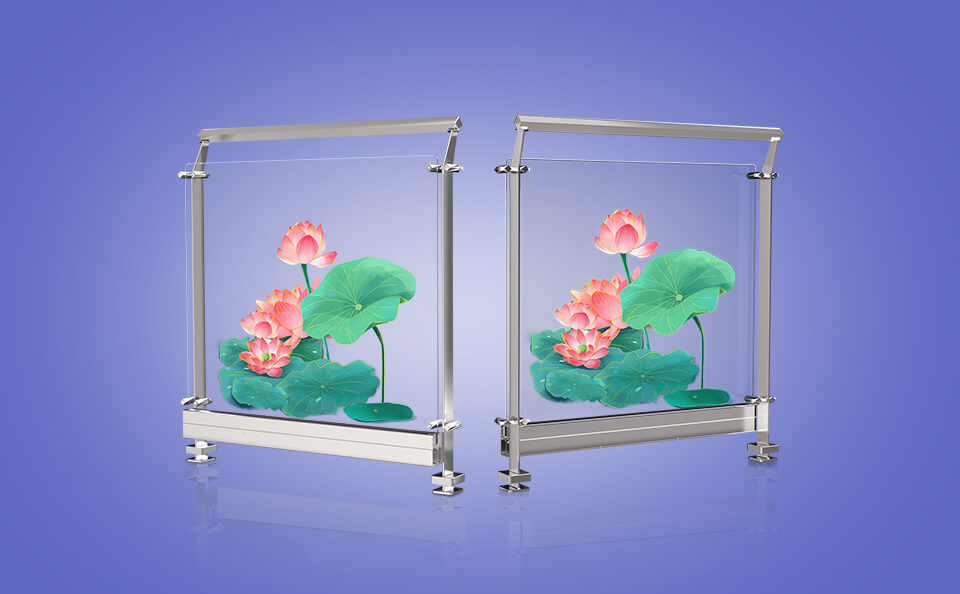

Full glass display and crystal clear

Maintain the transparency of glass while displaying dynamic video effects on the glass.

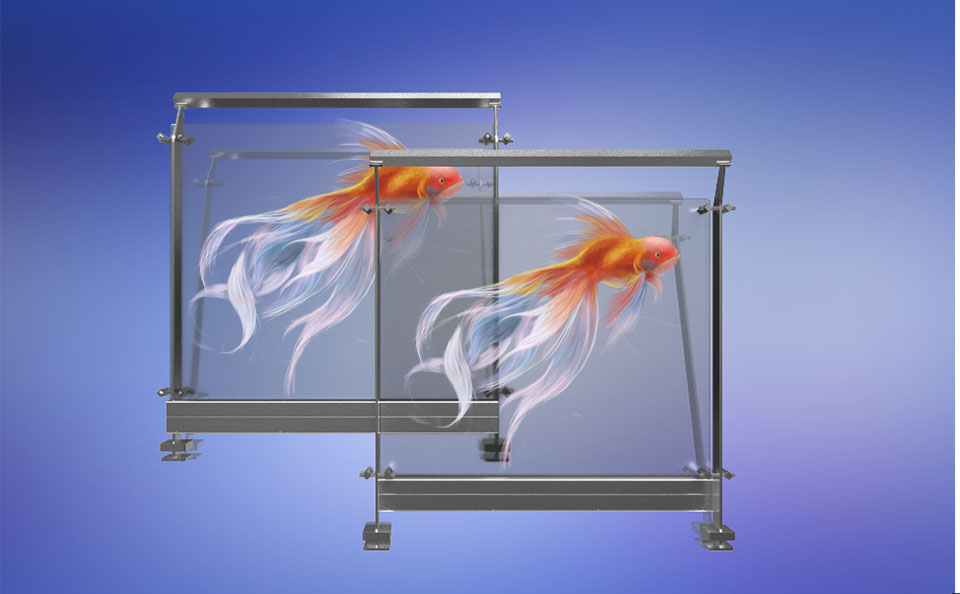

High transparency and high brightness achieve the prefect texture

Stable display while maintaining high refresh rate to achieve smoother visuals.

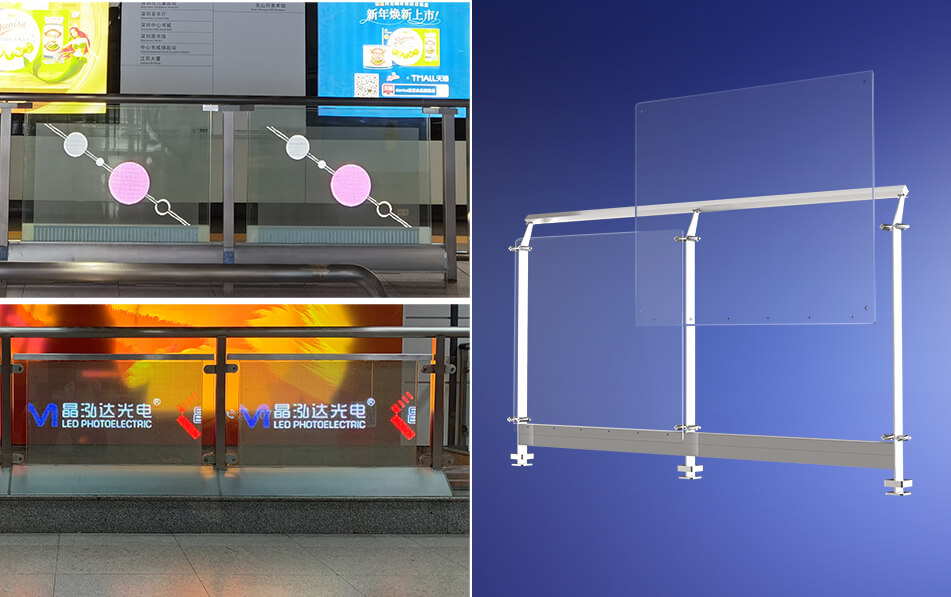

Technological elements in full applications

High integration,fast installation to use at once

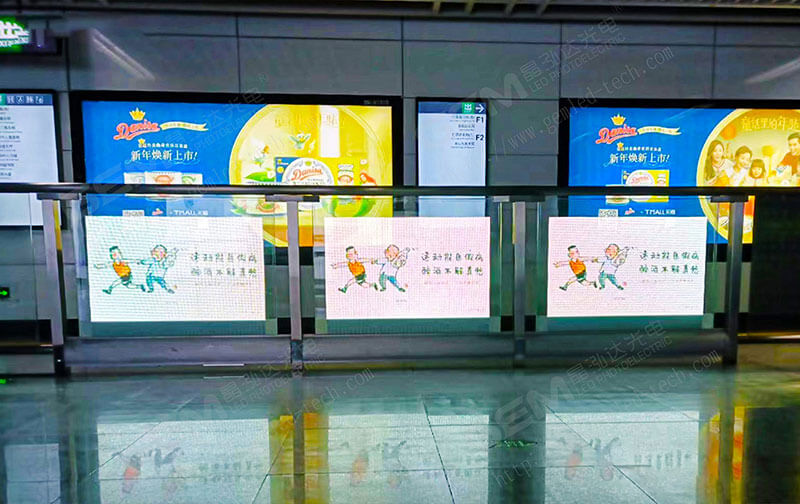

Highly transparency, applying to all fields.

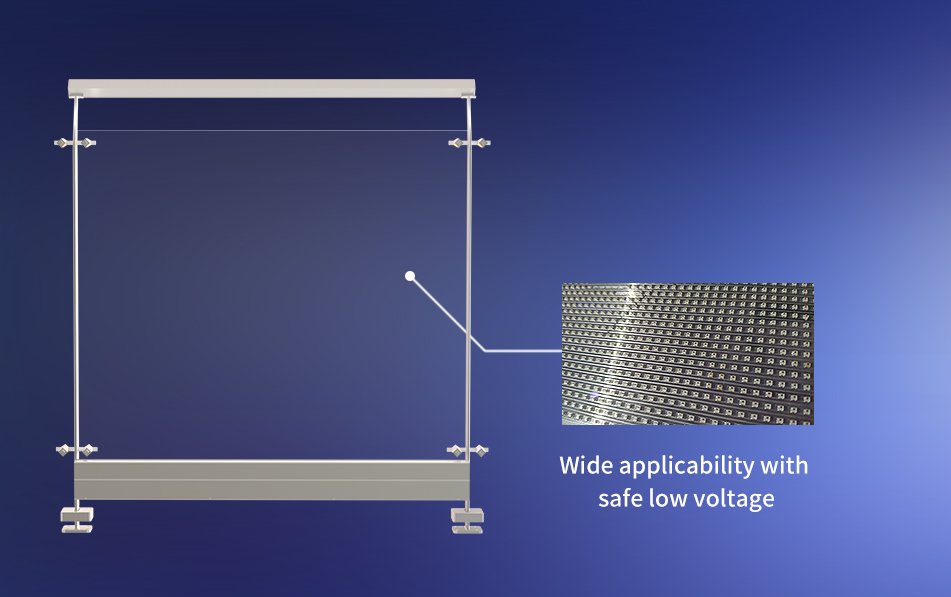

Wide applicability with safe low voltage

Adopt highly integration and Mini LED integrated design, the voltage is only 24V DC.

Product Parameters

Model	GEM-GB3.9	GEM-GB5-10	GEM-GB7.5	GEM-GB8	GEM-GB10	GEM-GB15.6	GEM-GB31.2	GEM-GB40
Pixel Pitch (H/V mm)	3.9	5-10	7.5	8	10	15.6	31.2	40
LED Configuration	Mini LED 1313	Mini LED 1313	Mini LED 2121	Mini LED 2121	Mini LED2121	Mini LED2121	Mini LED2121	Mini LED2121
Pixel Density (dot/m²)	65536	20000	17424	14400	10000	4096	1024	625
Transparency	70%	75%	80%	85%	88%	90%	92%	96%
Drive Scheme	Integration
Scan method	Static
Refresh Rate	1920Hz/2880Hz/3840Hz
Module Size W×H(mm)	610×180	1000×250	990×240	960×240	1000×250	1000×250	1000×250	1000×200
Module Resolution W×H(dot)	156×46	200×25	132×32	120×30	100×25	64×16	32×8	25×5
Product SizeW×H(mm)	1080×610	2000×1000	1980×960	1920×960	2000×1000	2000×1000	2000×1000	2000×1000
Cabinet Resolution W×H(dot)	276 ×156	400×100	264×128	240×120	200×100	128×64	64×32	50×25
Cabinet Weight (kg/m²）	30	40
IP Rating ( front/back)	INDOOR—IP30 OUTDOOR-IP65（or）
Brightness(CD/m²)	1000-5000	1000-5000	1000-5000	1000-5000	1000-5000	1000-2000	1000-2000	1000-2000
Viewing Angle (H/V)	145°/145°
Viewing Distance（m）	4	5	8	8	10	15	30	40
Gray Scale	8-16bit
Max.Power Consumption (w/m²）	800	800	800	800	800	400	200	200
Ave.Power Consumption(w/m²）	230	230	180	180	180	160	100	50
Environment	INDOOR（Optional outdoor standard）
Control Mode	Special system for LED dispaly（4G+5G、APP、WIFI、LANcontrol）
Support Input	HDMI、DVI、DP、SDI
Operation Power	AC100~240V,50/60Hz
Operating Temperature	0℃~40℃(work),'-20℃~60℃(store)
Operating Humidity	10%-90%RH
Operating Life	>50,000hours
