Crystal screen series-Glass Guide LED Display

"Crystal" screen series GB-LED
glass screen

High light transmittance, reliable quality, easy to install, high refresh rate, wide vision-360 is easy to maintain with high brightness

Home Product GB Series

Overview Parameters

With high brightness and colorful feature to attract more attentions

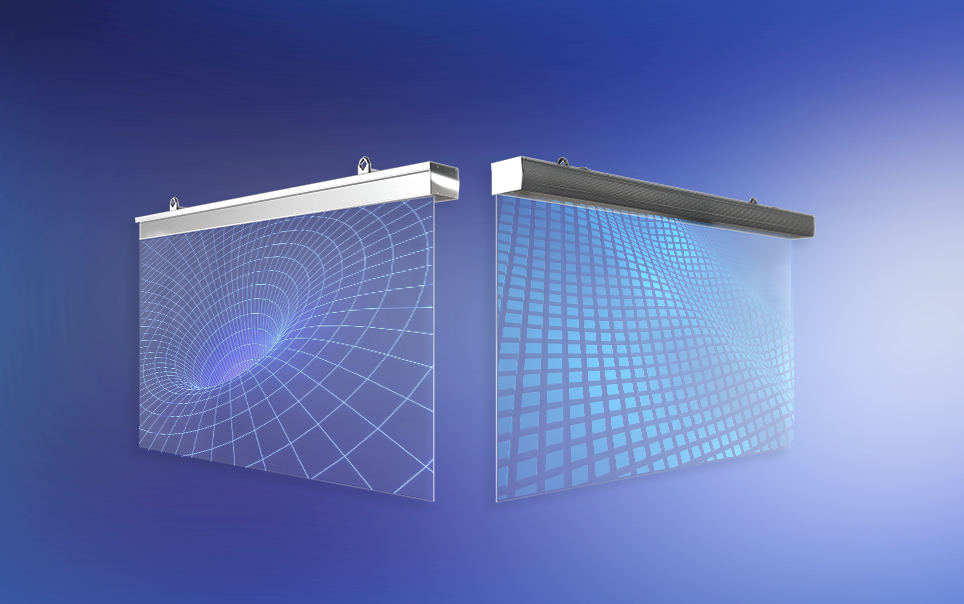

By combining Mini LED with glass through specific processes
the original transparency of the glass is maintained while achieving dynamic video effects on the glass.

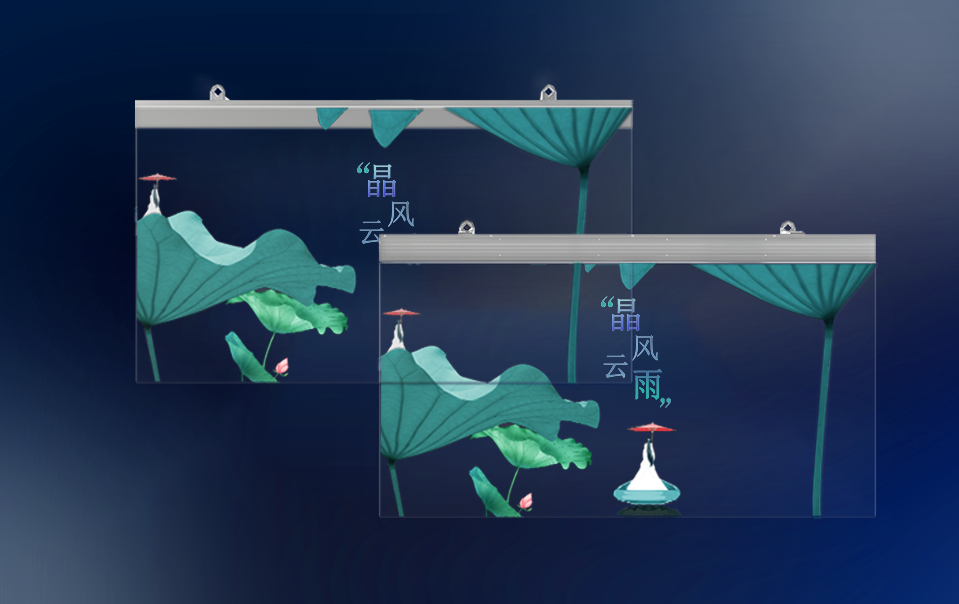

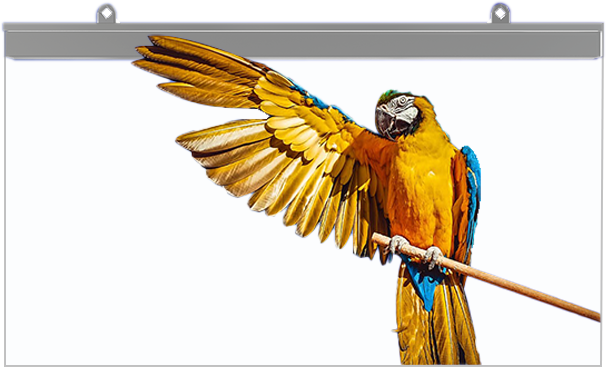

Transparent texture with brilliant bright light.

The transparent appearance gives the LED glass screen full with a sense of technology, fashion, and future.

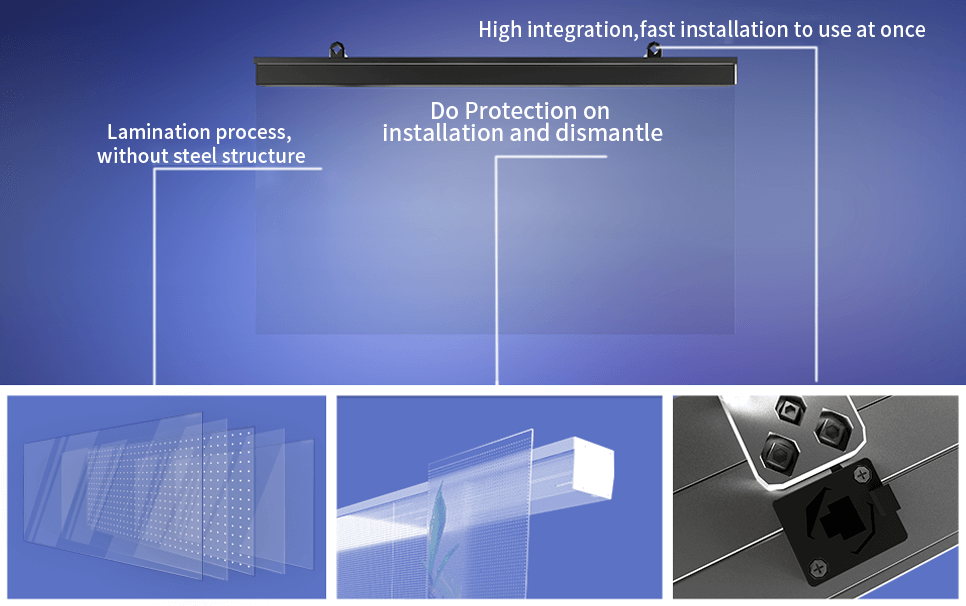

Reliable quality and easy installation

Do Protection on installation and dismantle.
Lamination process, without steel structure
Easy and fast installation, plug in and light on to work.

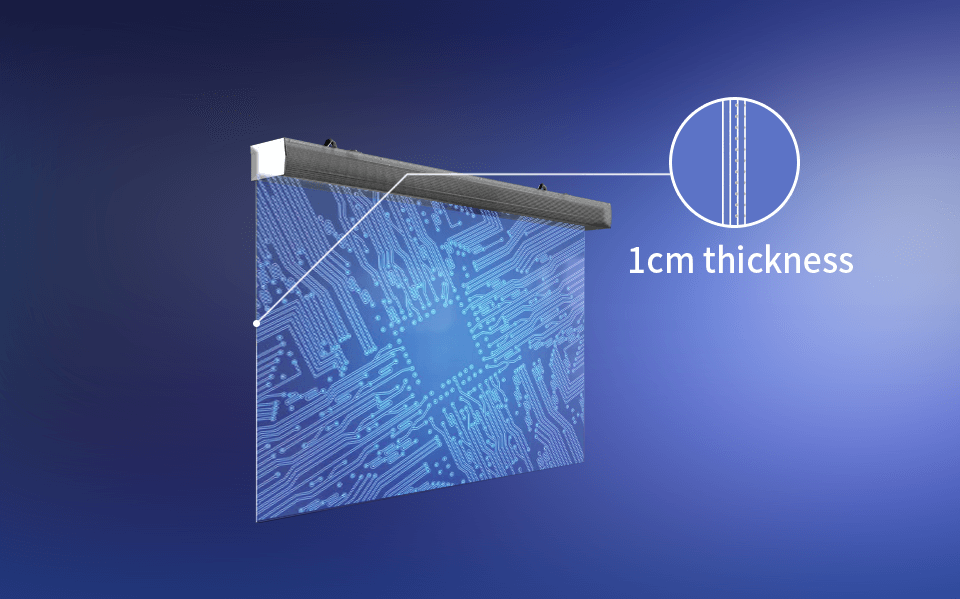

Integrated Design and transparent Wire

Adopt new invention of transparent circuit technology and fully new algorithm of driver chip, combined with such integration of Mini LED and other technological processes.

Product Parameters

Model	GEM-GB3.9	GEM-GB5-10	GEM-GB7.5	GEM-GB8	GEM-GB10	GEM-GB15.6	GEM-GB31.2	GEM-GB40
Pixel Pitch (H/V mm)	3.9	5-10	7.5	8	10	15.6	31.2	40
LED Configuration	Mini LED 1313	Mini LED 1313	Mini LED 2121	Mini LED 2121	Mini LED2121	Mini LED2121	Mini LED2121	Mini LED2121
Pixel Density (dot/m²)	65536	20000	17424	14400	10000	4096	1024	625
Transparency	70%	75%	80%	85%	88%	90%	92%	96%
Drive Scheme	Integration
Scan method	Static
Refresh Rate	1920Hz/2880Hz/3840Hz
Module Size W×H(mm)	610×180	1000×250	990×240	960×240	1000×250	1000×250	1000×250	1000×250
Module Resolution W×H(dot)	156×46	200×25	132×32	120×30	100×25	64×16	32×8	25×5
Product SizeW×H(mm)	1080×610	2000×1000	1980×960	1920×960	2000×1000	2000×1000	2000×1000	2000×1000
Cabinet Resolution W×H(dot)	276 ×156	400×100	264×128	240×120	200×100	128×64	64×32	50×25
Cabinet Weight (kg/m²）	30	40
IP Rating ( front/back)	INDOOR—IP30 OUTDOOP-IP65（or）
Brightness(CD/m²)	1000-5000	1000-5000	1000-5000	1000-5000	1000-5000	1000-2000	1000-2000	1000-2000
Viewing Angle (H/V)	145°/145°
Viewing Distance（m）	4	5	8	8	10	15	30	40
Gray Scale	8-16bit
Max.Power Consumption (w/m²）	800	800	800	800	800	400	200	200
Ave.Power Consumption(w/m²）	230	230	180	180	180	160	100	50
Environment	INDOOR（Optional outdoor standard）
Control Mode	Special system for LED dispaly（4G+5G、APP、WIFI、LANcontrol）
Support Input	HDMI、DVI、DP、SDI
Operation Power	AC100~240V,50/60Hz
Operating Temperature	0℃~40℃(work),'-20℃~60℃(store)
Operating Humidity	10%-90%RH
Operating Life	>50,000hours
